lisp2arx / http://www.theswamp.org/ /

pp_topoxcad.vlax - Arien Heron formulas

Pagini: 1

Moderat de zauchan

zauchan
Moderator
Postari: 180

The K129 l129 m129 are reals variabiles.

Code:

(Defun dfn_triunghi_arieheron (k129 l129 m129 / $db per2 r prod a b c $db)
   (setq;|a4059855|;
     $db "Now Check the k128 l129 m129 are triangle"
     $rr "Failed you tri-line have WrongDimension"
     k129 (if_real k129 (- 1.0))
     l129 (if_real l129 (- 1.0))
     m129 (if_real m129 (- 1.0))) (if (<  k129 0.0) (setq;|a4060009|;
     $db nil) (if (<  l129 0.0) (setq;|a4060043|;
     $db nil) (if (<  m129 0.0) (setq;|a4060077|;
     $db nil) (if (>  k129 (+ l129 m129)) (setq;|a4060117|;
     $db nil) (if (>  l129 (+ k129 m129)) (setq;|a4060157|;
     $db nil) (if (>  m129 (+ k129 l129)) (setq;|a4060195|;
     $db nil))))))) (if (/= $db nil) (setq;|a4060245|;
     $db (/ (+ k129 l129 m129) 2.0)
     prod (* per2 (- per2 k129) (- per2 l129) (- per2 m129))
     $rr (sqrt (abs prod))))
$rr)

Version Unchecked. Please you test your self the equations are fine

Code:

(Defun dfn_triunghi_heronform(k129 l129 m129 / $db per2 r prod a b c $db)
/*c2s:
       $db="Now Check the k128 l129 m129 are triangle";
       $rr="Failed" you tri-line have WrongDimension";
       k129=if_real(k129,-1.0),
       l129=if_real(l129,-1.0),
       m129=if_real(m129,-1.0);
       if (k129<0.0) $db=nil;
       if (l129<0.0) $db=nil;
       if (m129<0.0) $db=nil;
       if (k129>(l129+m129)) $db=nil;
       if (l129>(k129+m129)) $db=nil;
       if (m129>(k129+l129)) $db=nil;
       if ($db)
          a=k129,
          b=l129,
          c=m129,
          a=a*a,
          b=b*b,
          c=c*c,
          $rr=a+b-c,
          $rr=$rr*$rr,
          $rr=0.25*sqrt(abs(4*a*b-$rr));
*/
$rr)

Code:

(Defun if_real(a108 tzxelse / $rr) ;_ASSERT_OK
   (setq;|a4687509|;
     $rr (if (=  (type a108) (quote SYM)) (eval a108) a108)
     $rr (cond ( (=  (type $rr) (quote INT)) (+ 1.0 (- $rr 1)))( (=  (type $rr) (quote REAL)) $rr)( tzxelse)))
$rr)

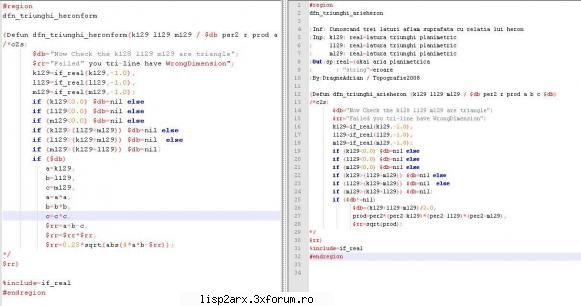

pp_topoxcad.vlax - Arien Heron formulas - The K129 l129 m129 are reals variabiles - http://www.theswamp.org/ — pp_topoxcad.vlax - Arien Heron formulas – poza de zauchan, in http://www.theswamp.org/ · 28.6KB

_______________________________________
psw: cea de la wjndowsXP gigabyte..

admin
Administrator
Din: Bucharest
Postari: 523

First you must check the 3reals are made-triangles geometric shape>?
Second you calculate semiperimeter with Sqrt
Third. you calculate Sqrt() or Sqrt(abs())

Code:

(Defun dfn_triunghi_arieheron(k129 l129 m129 / $db per2 r prod a b c $db) (setq $db"Now Check the k128 l129 m129 are triangle"$rr"Failed you tri-line have WrongDimension"k129(if_real k129(- 1.0) ) l129(if_real l129(- 1.0) ) m129(if_real m129(- 1.0) ) ) (if(< k129 0.0) (setq $db nil) (if(< l129 0.0) (setq $db nil) (if(< m129 0.0) (setq $db nil) (if(> k129(+ l129 m129) ) (setq $db nil) (if(> l129(+ k129 m129) ) (setq $db nil) (if(> m129(+ k129 l129) ) (setq $db nil) ) ) ) ) ) ) (if(/= $db nil) (setq $db(/(+ k129 l129 m129) 2.0) prod(* per2(- per2 k129) (- per2 l129) (- per2 m129) ) $rr(sqrt prod) ) ) $rr) (Defun dfn_triunghi_heronform(k129 l129 m129 / $db per2 r prod a b c $db) (setq $db"Now Check the k128 l129 m129 are triangle"$rr"Failed you tri-lines have WrongDimension"k129(if_real k129(- 1.0) ) l129(if_real l129(- 1.0) ) m129(if_real m129(- 1.0) ) ) (if(< k129 0.0) (setq $db nil) (if(< l129 0.0) (setq $db nil) (if(< m129 0.0) (setq $db nil) (if(> k129(+ l129 m129) ) (setq $db nil) (if(> l129(+ k129 m129) ) (setq $db nil) (if(> m129(+ k129 l129) ) (setq $db nil) ) ) ) ) ) ) (if $db(setq a k129 b l129 c m129 a(* a a) b(* b b) c(* c c) $rr(-(+ a b) c) $rr(* $rr $rr) $rr(* 0.25(sqrt(abs(-(* 4 a b) $rr) ) ) ) ) ) $rr) (Defun if_real(a108 tzxelse / $rr) (setq $rr(if(=(type a108) (quote SYM) ) (eval a108) a108) $rr(cond((=(type $rr) (quote INT) ) (+ 1.0(- $rr 1) ) ) ((=(type $rr) (quote REAL) ) $rr) (tzxelse) ) ) $rr)

27.07=Biserica Sf. Pantelimon, pe Linia troleibuz 86, in intersectia cu bulevardul Dacia.
Se da pachete de hram in iulie

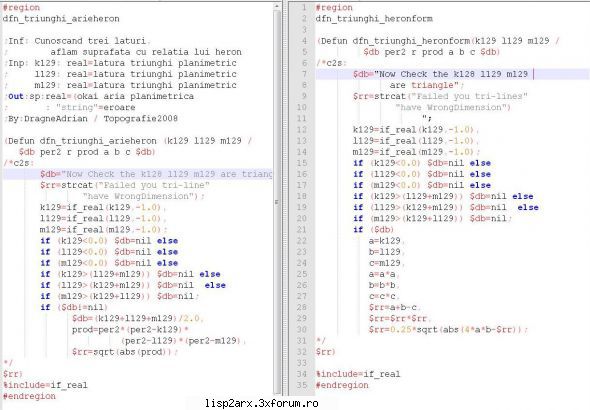

pp_topoxcad.vlax - Arien Heron formulas - First you must check the 3reals are - http://www.theswamp.org/ — pp_topoxcad.vlax - Arien Heron formulas – poza de admin, in http://www.theswamp.org/ · 47.5KB

_______________________________________
http://www.puiubrat.3x.ro/lisp2arx/lisp ... O2UTM2.pdf
